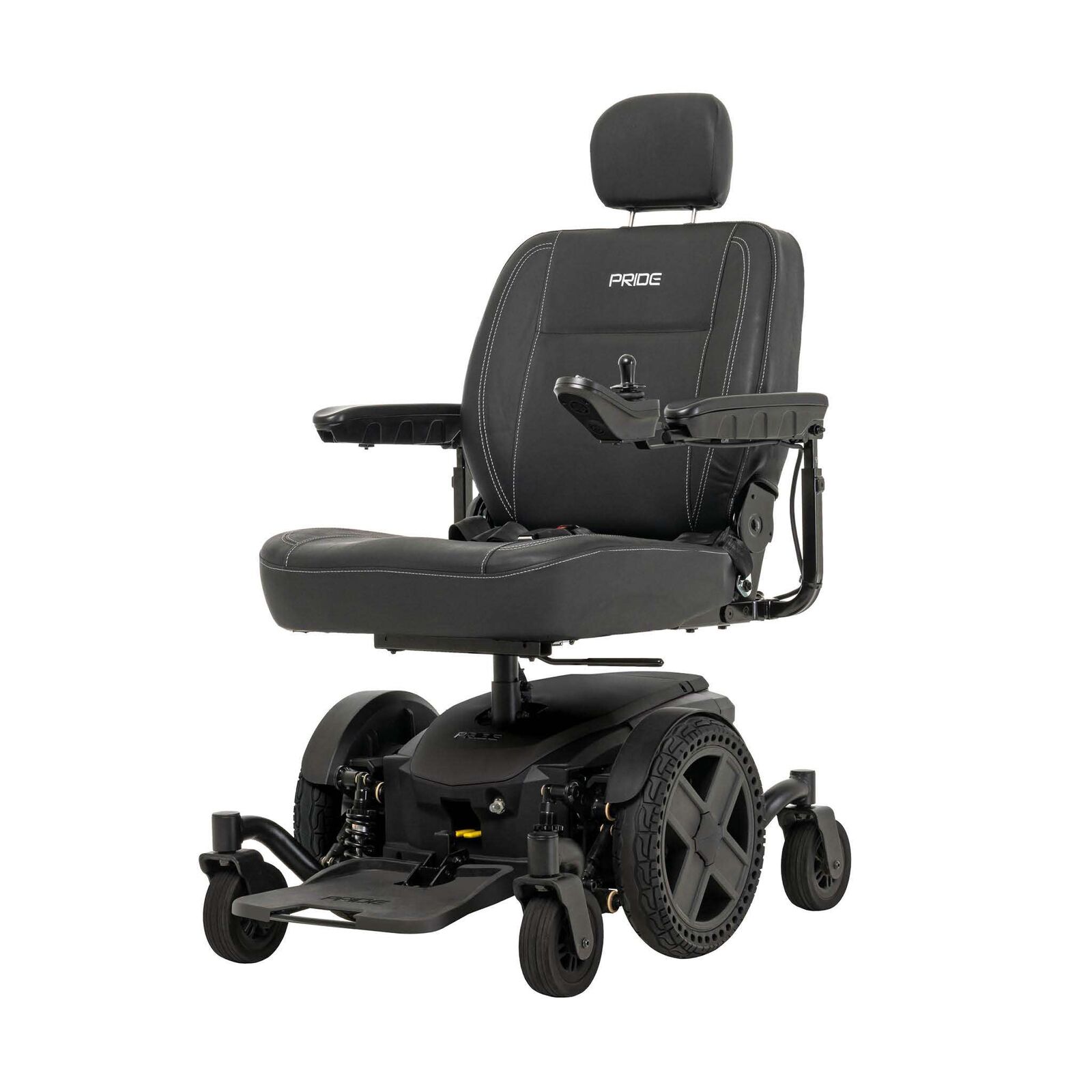

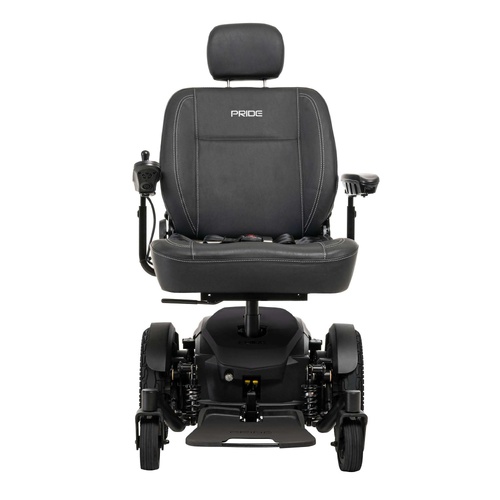

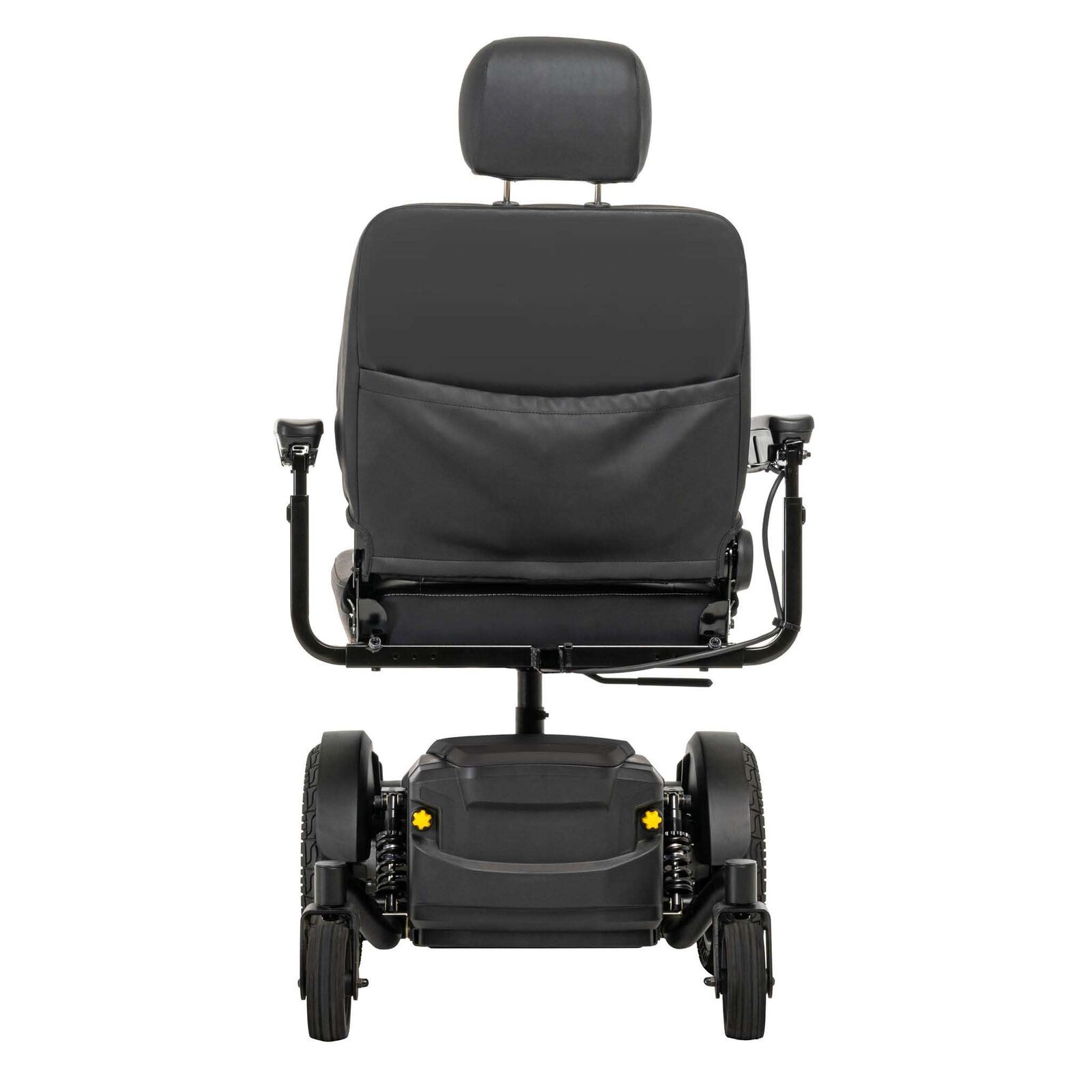

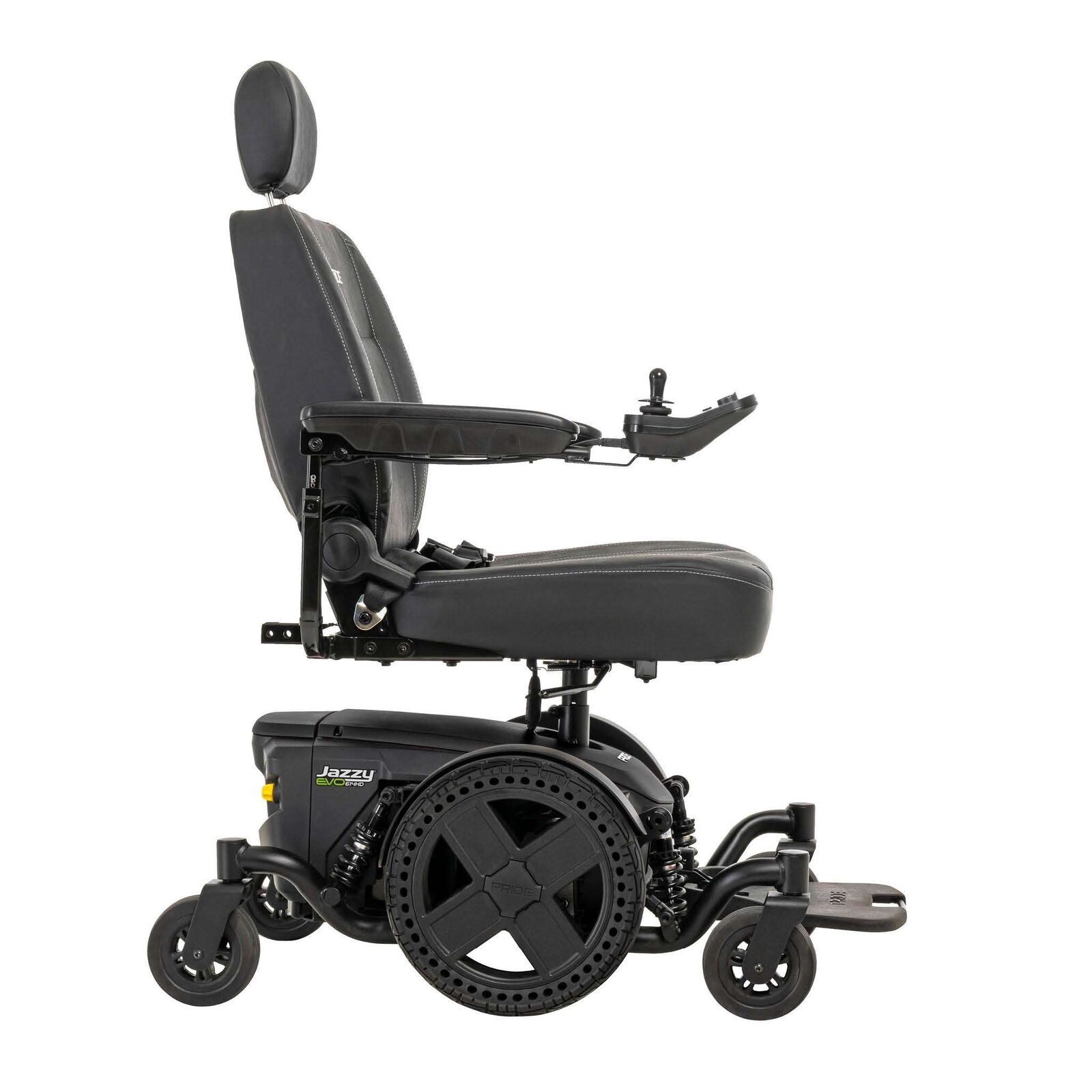

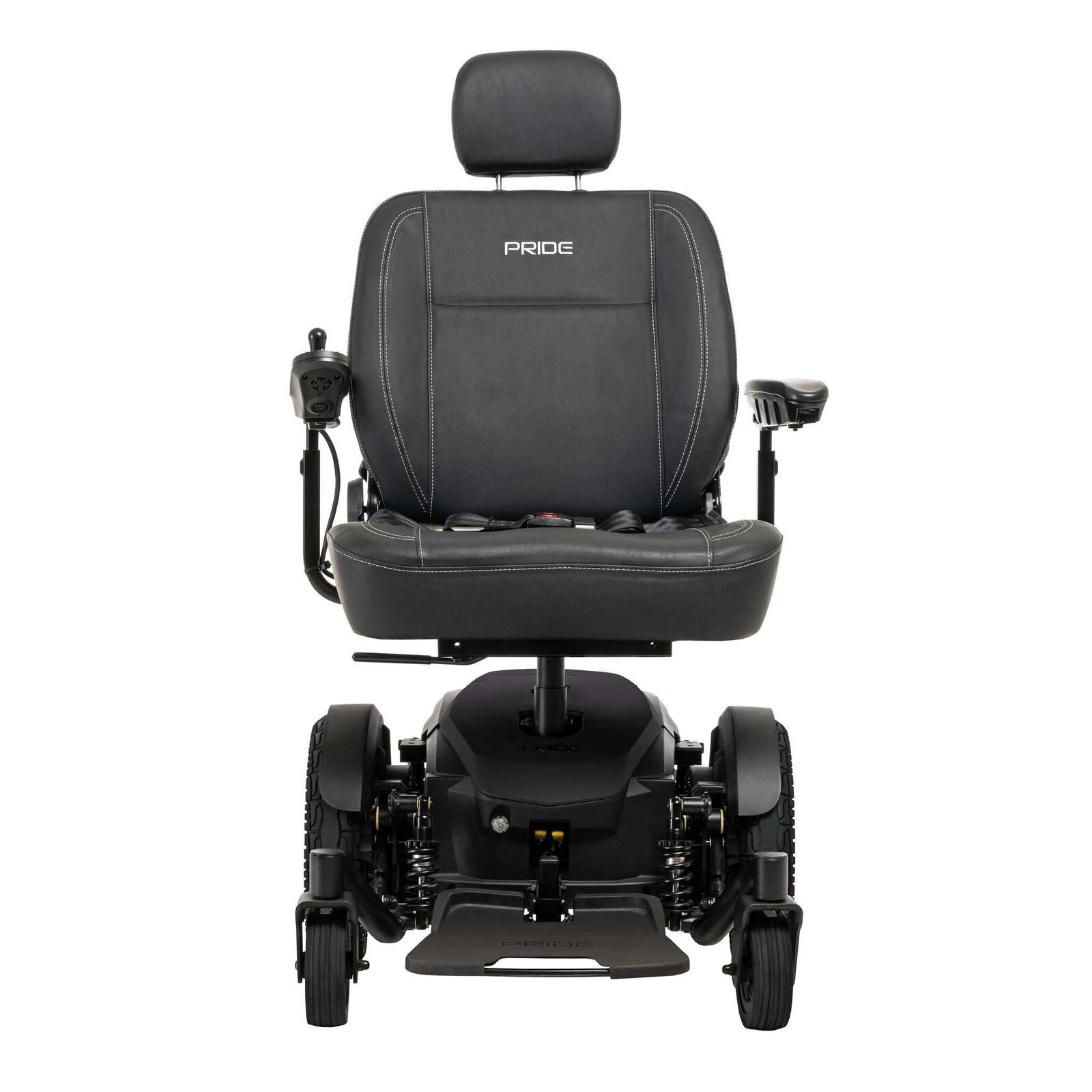

Pride Jazzy EVO 614 HD

Pride Jazzy EVO 614 HD

The Jazzy EVO 614HD is designed for both everyday indoor use and challenging outdoor terrain. With a 204kg weight capacity and solid 13.75-inch drive wheels, it delivers both strength and stability. Equipped with a regenerative electro-mechanical braking system and front and rear independent Active-Trac® (ATX) Suspension, it ensures smooth and dependable performance. For added comfort, the depth-adjustable memory foam high-back seat, height and width-adjustable armrests, and spacious footplate are all tailored to support your needs.

Features

• Width and height adjustable flip-up armrests
• Optional swing-away controller mount
• Front and rear independent Active-Trac® ATX Suspension
• Heavy-duty seat post
• Convenient access to the controller and batteries while the user remains seated
• Depth-adjustable, limited recline, memory foam, high-back swivel seat
• Large footplate with removable rubber cover for easy cleaning

Specifications

• Range Per Charge: Up to 21km
• Maximum Weight Capacity: 204kg
• Maximum Speed: 7.8km/h
• Length & Width: 101.6cm(L) x 64.5cm (W)
• Weight of Heaviest Piece: 65kg
• Ground Clearance: 7.6cm at mid-frame
• Seat Size Width and Depth: 50.8cm x 50.8cm or 55.8cm x 50.8cm
• Standard Seat Weight: 23.6kg high-back
• High Back Seat to Floor Range: 55.8cm-60.9cm
• Standard Electronics: 60A, dynamic linx
• Braking System: Regenerative & electro-mechanical
• Suspension: Active-Trac® (ATX)
• Drive Wheels: 13.75” solid
• Drive Train: Two motor, in-line HD, mid-wheel drive
• Rear Castors: 6” solid
• Battery Requirements: (2) 55AH, 12V
• Battery Charger: Off-board, 5A
• Battery Weight: 16.8kg each

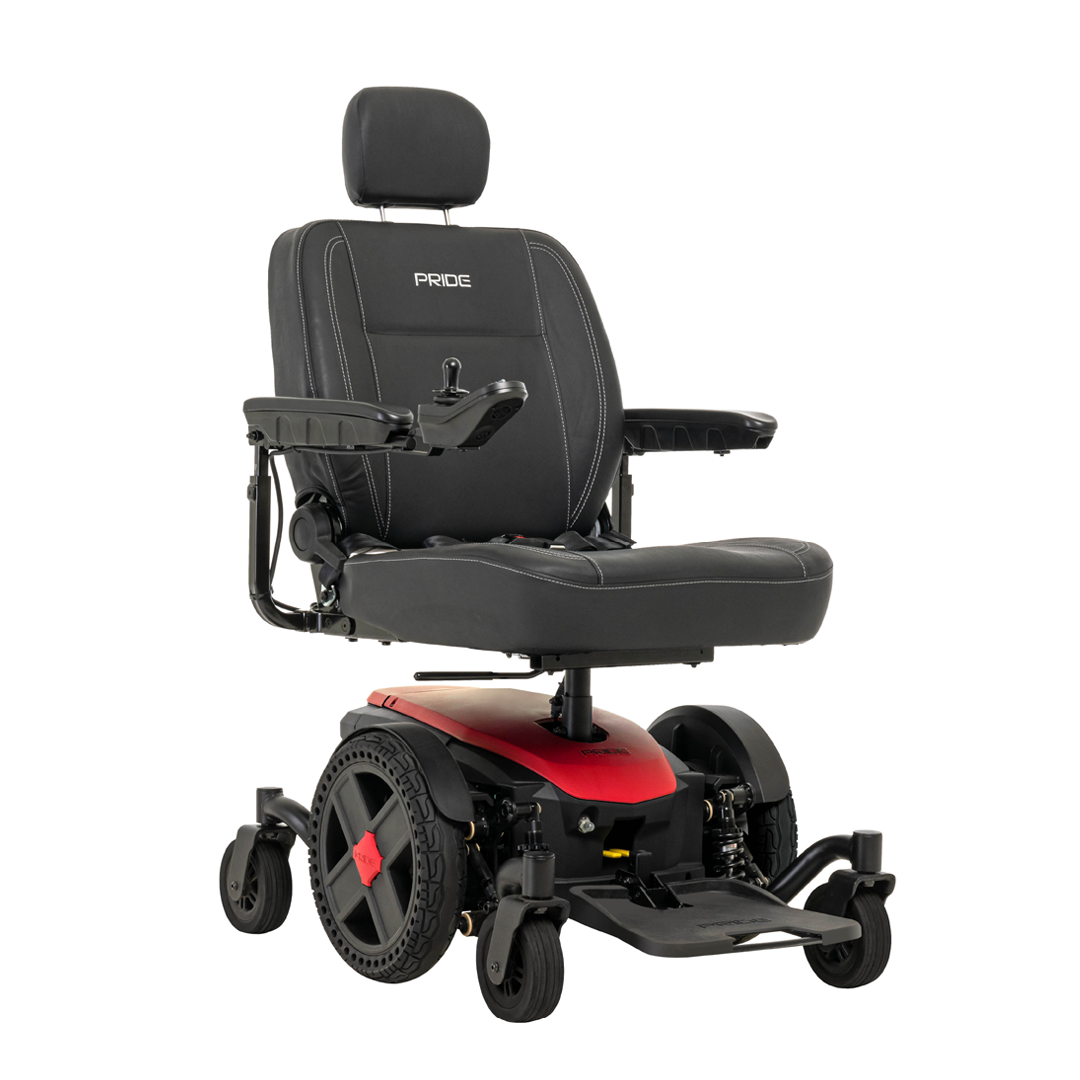

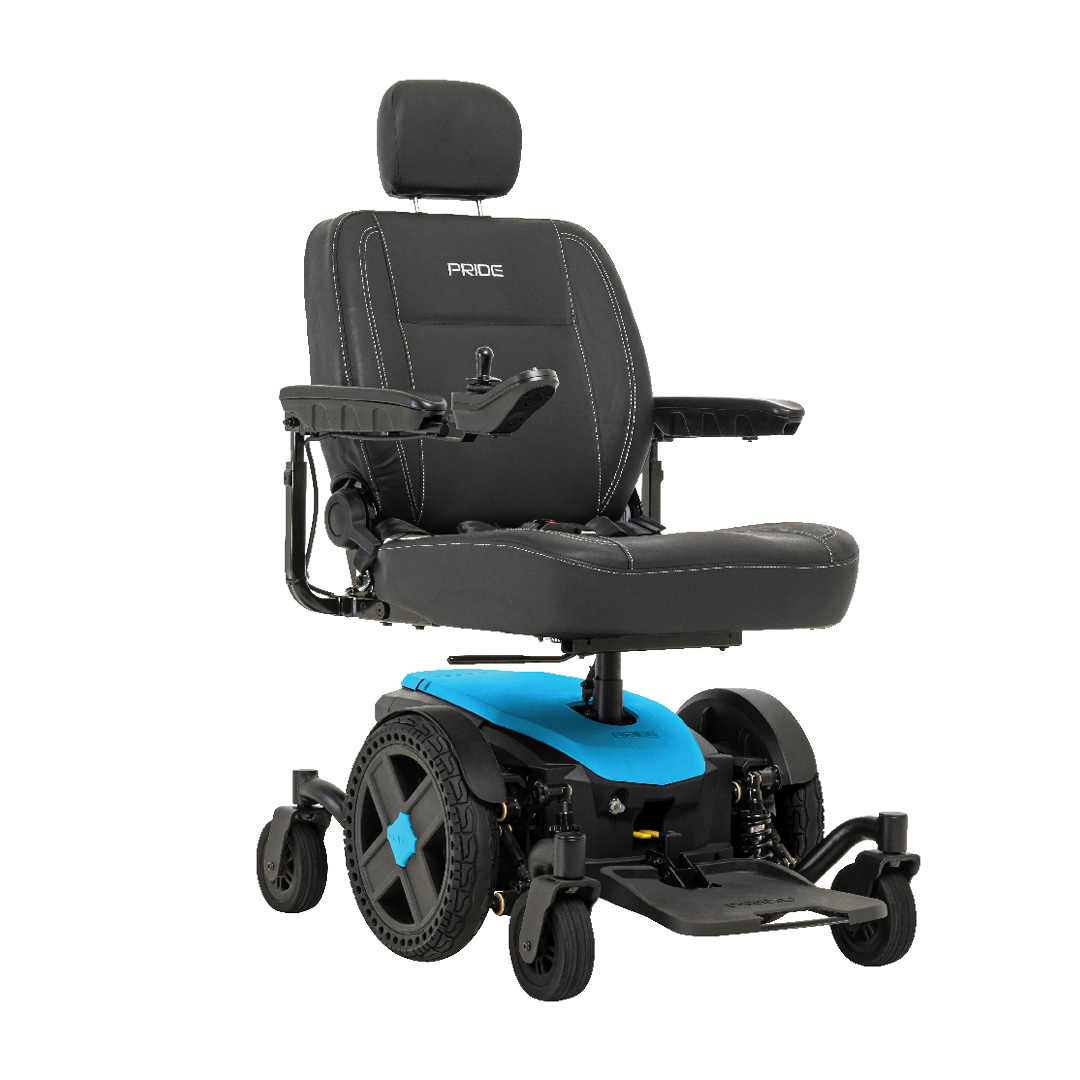

• Colour Options: Black, Blue, Red
